| home railway pages block instrument wiring LMS instruments standard wiring |

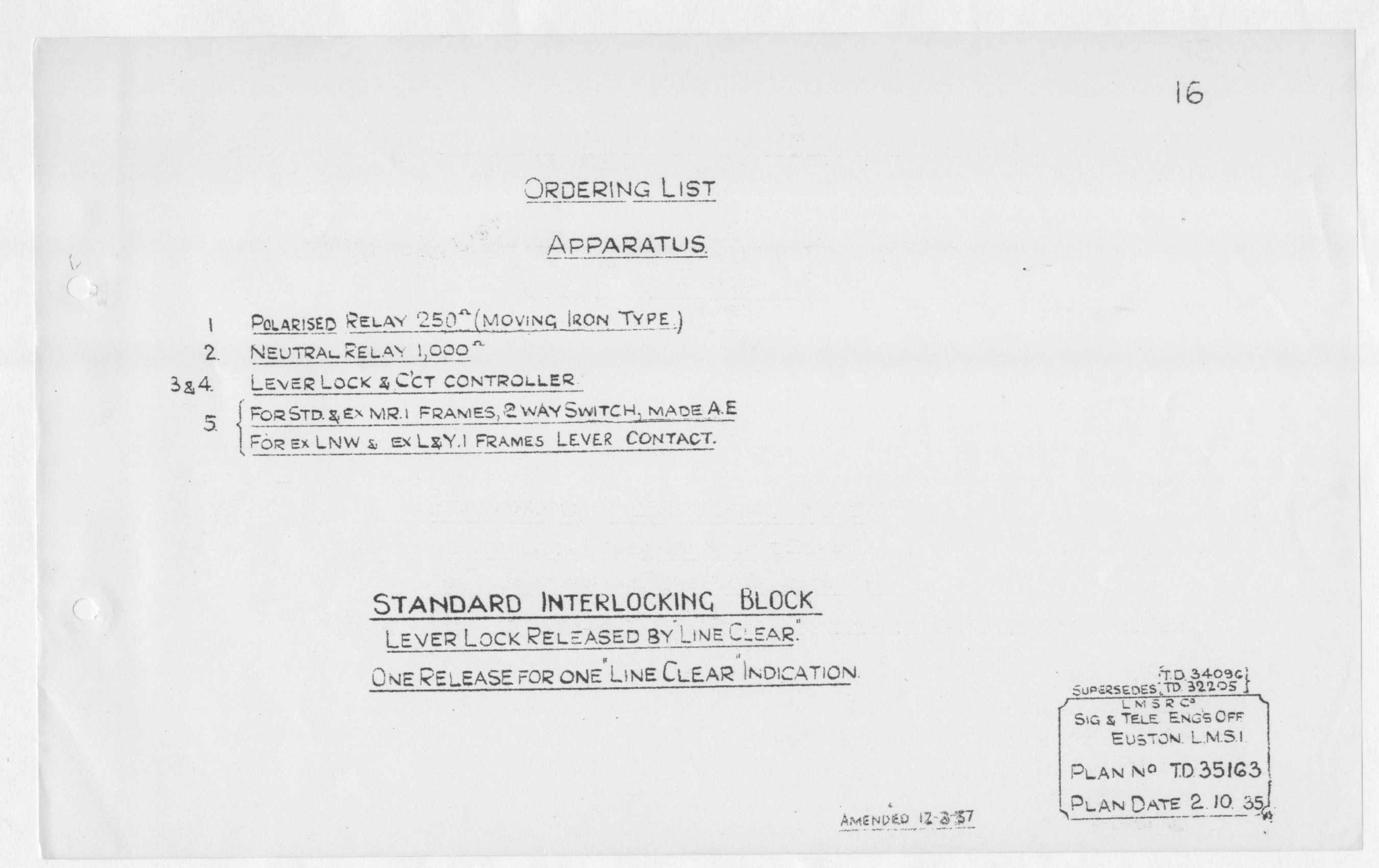

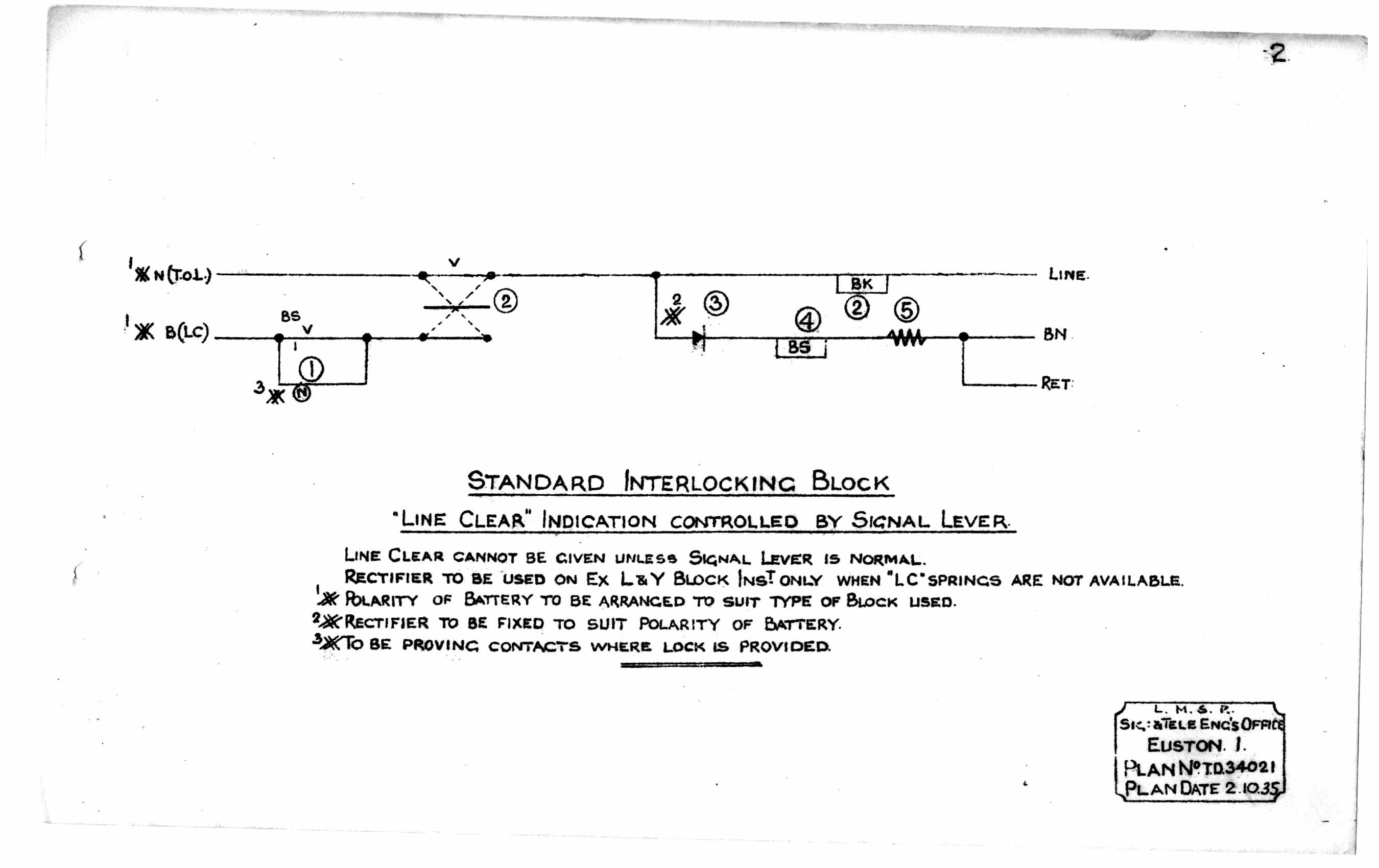

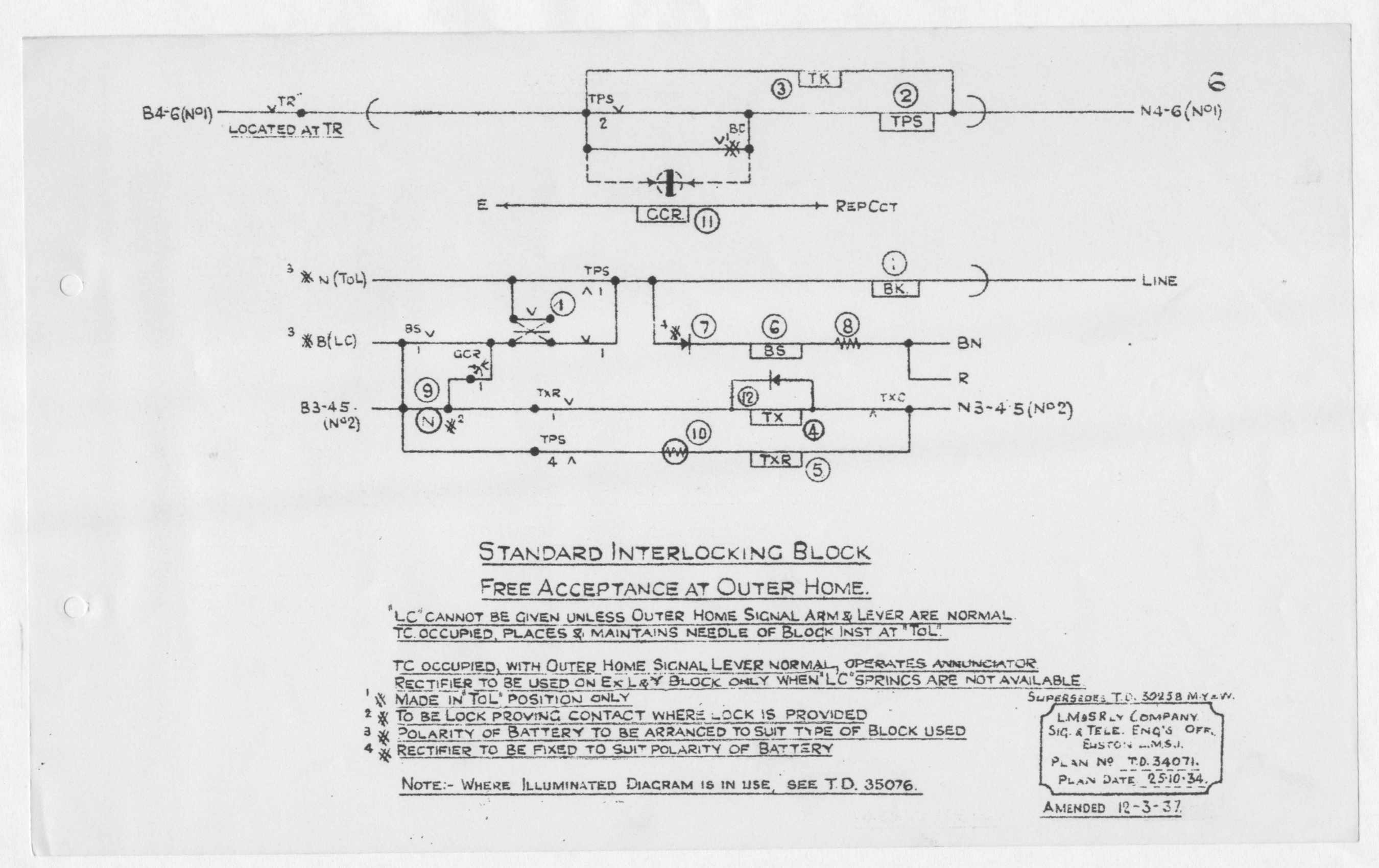

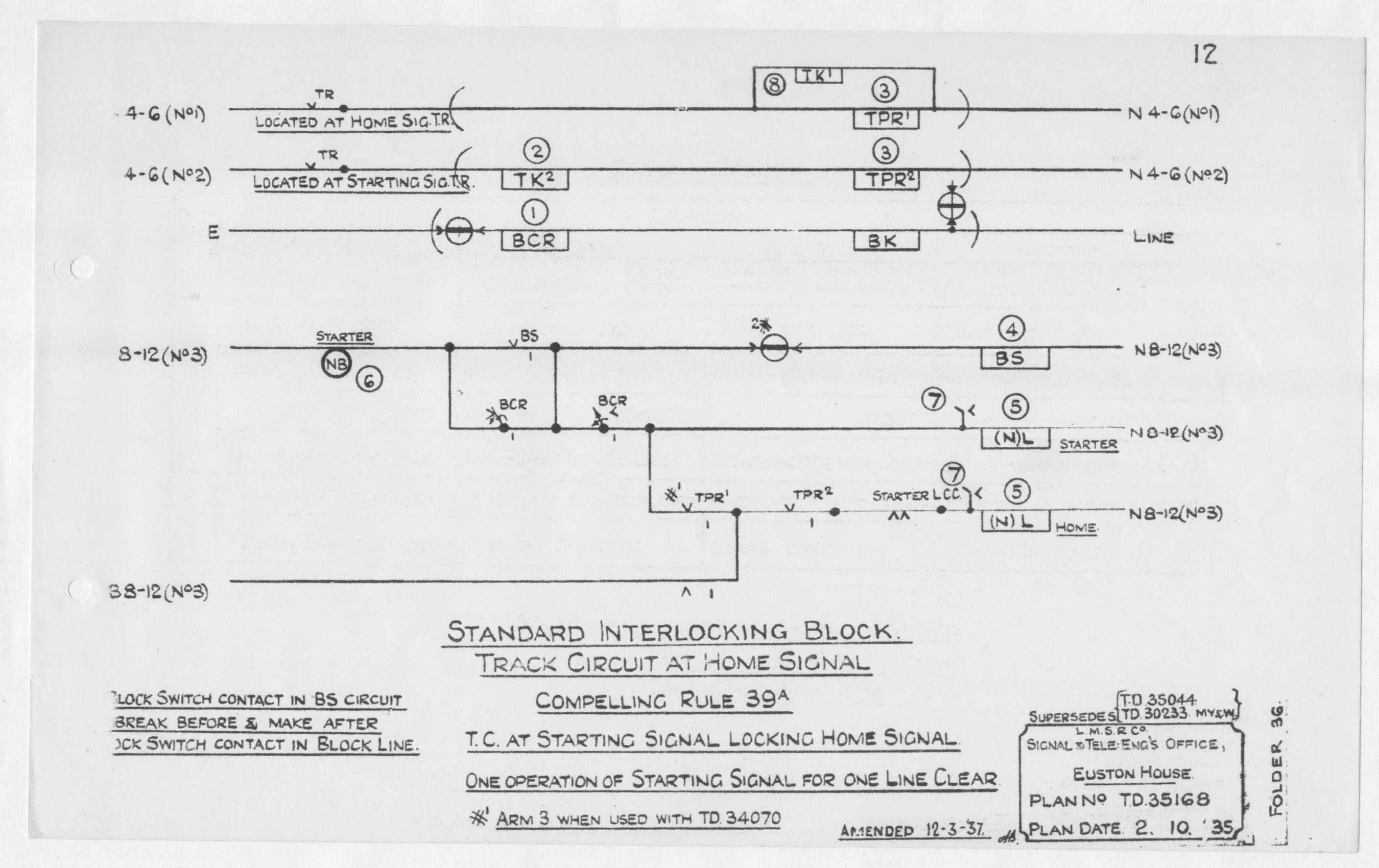

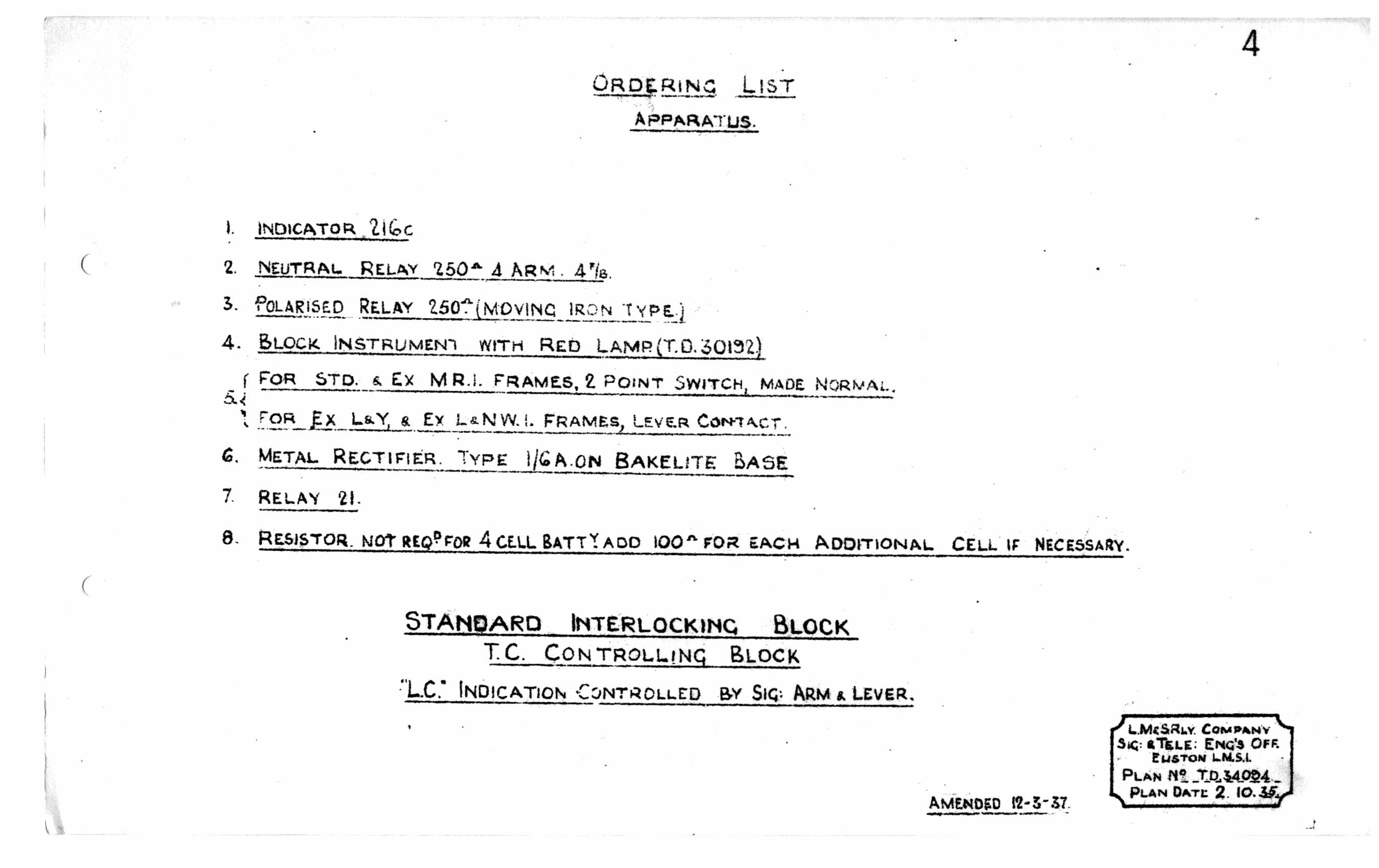

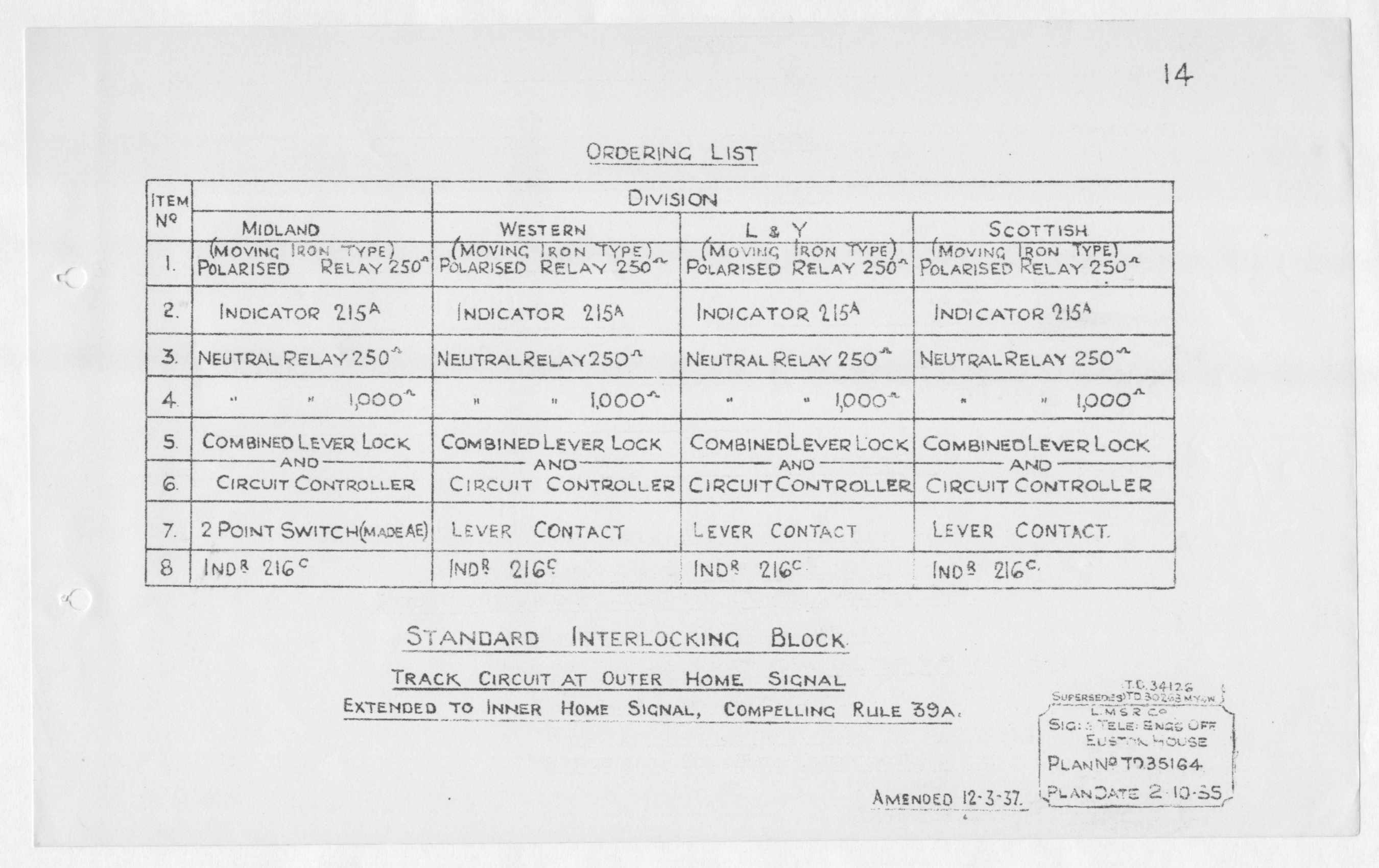

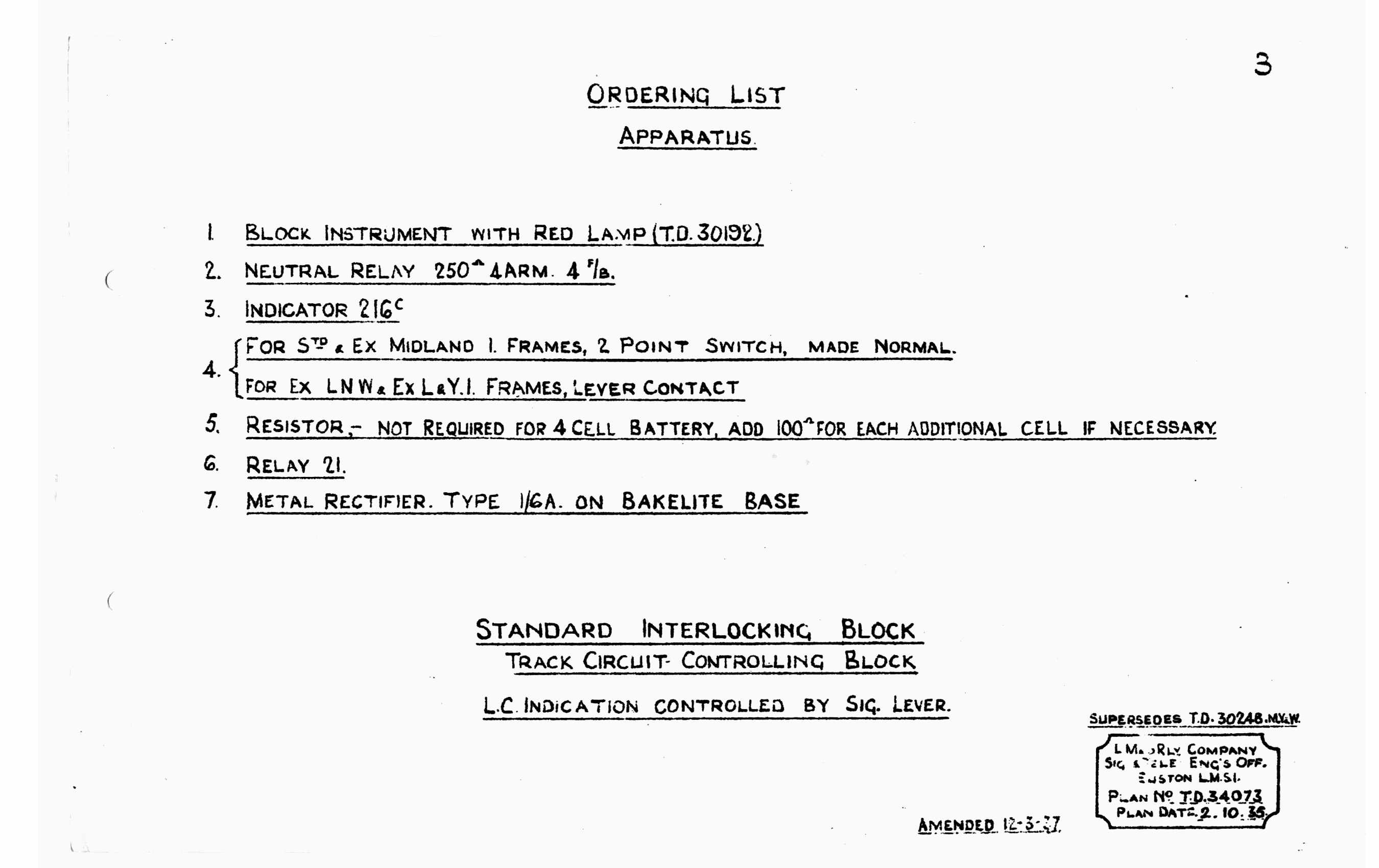

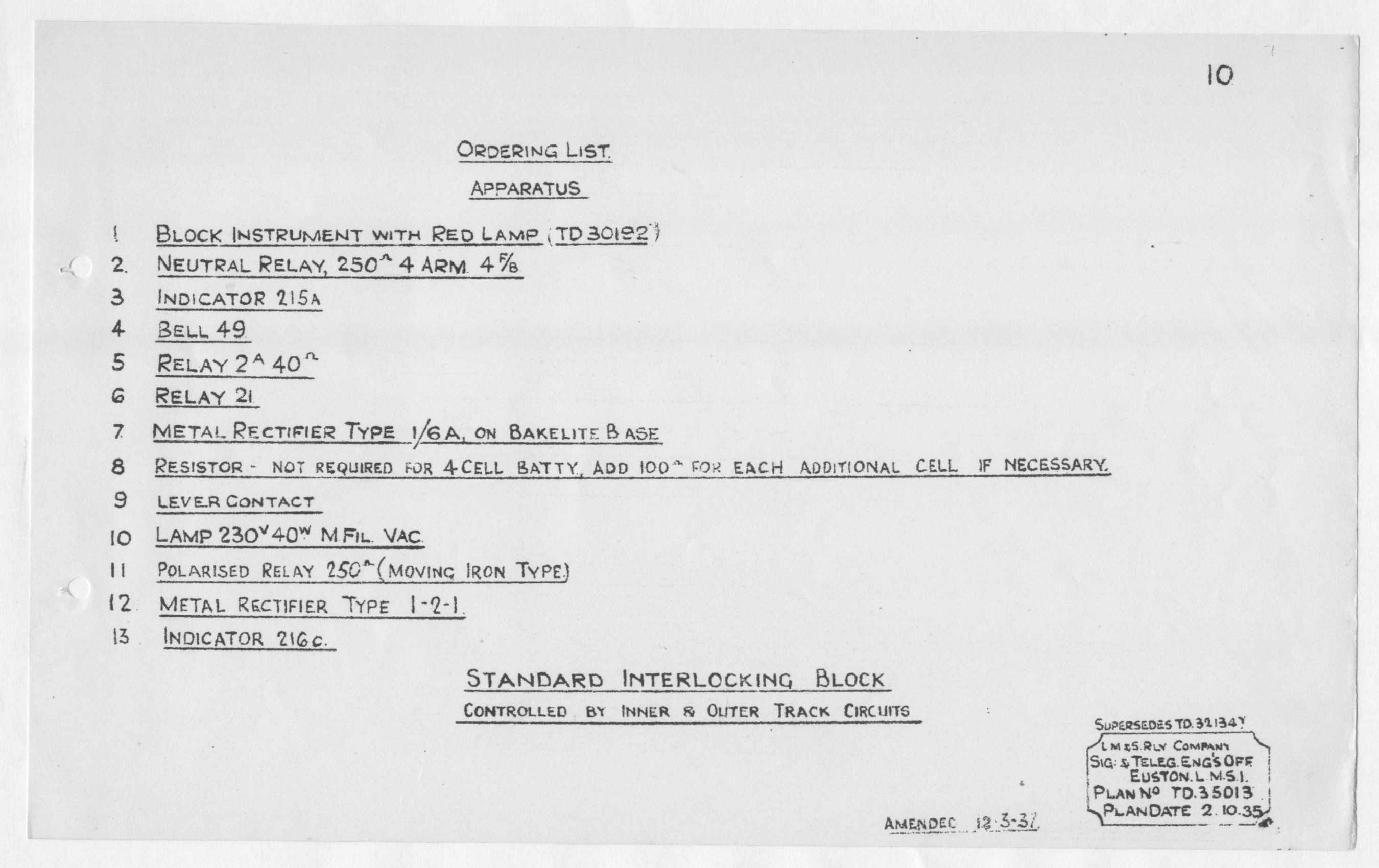

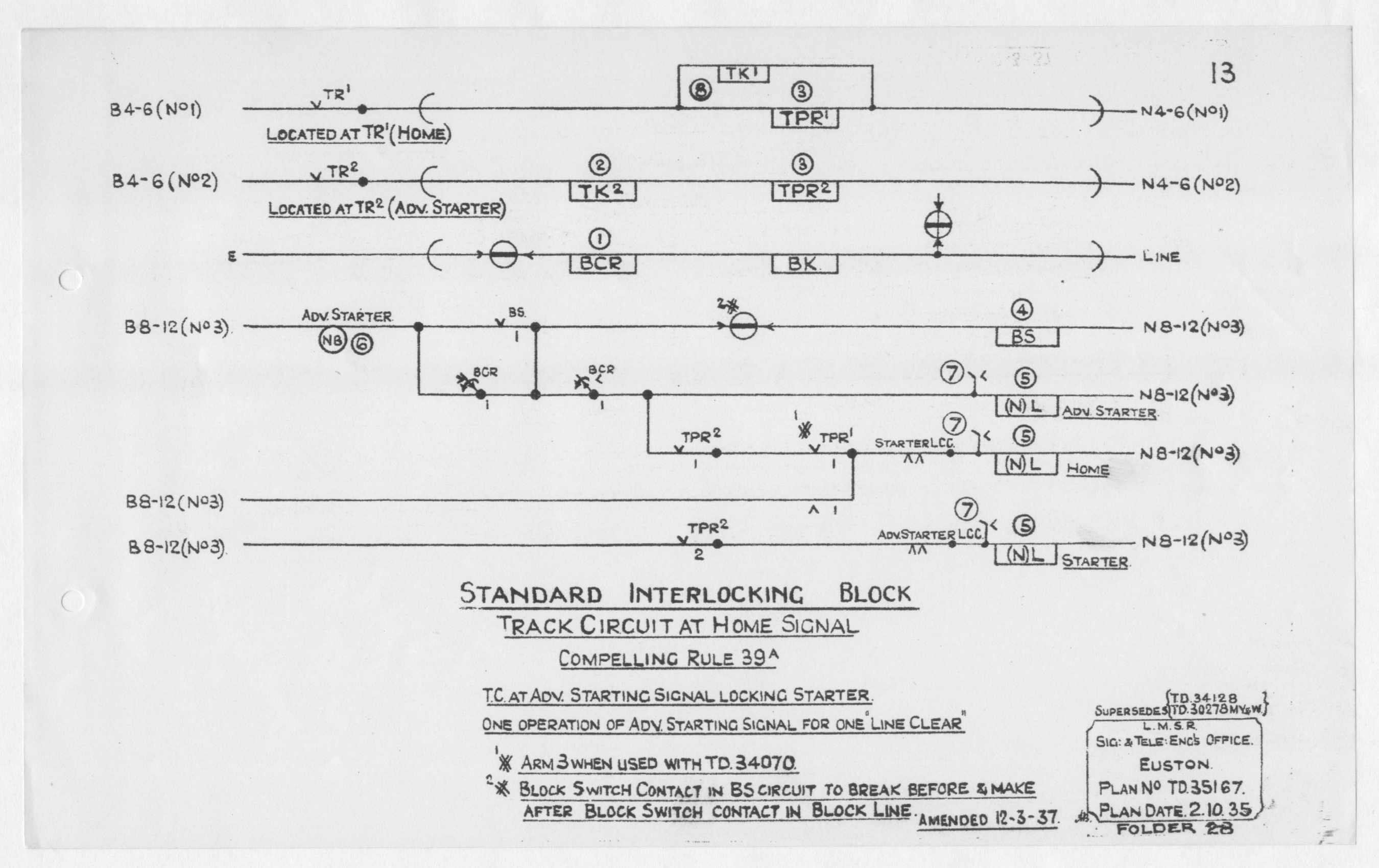

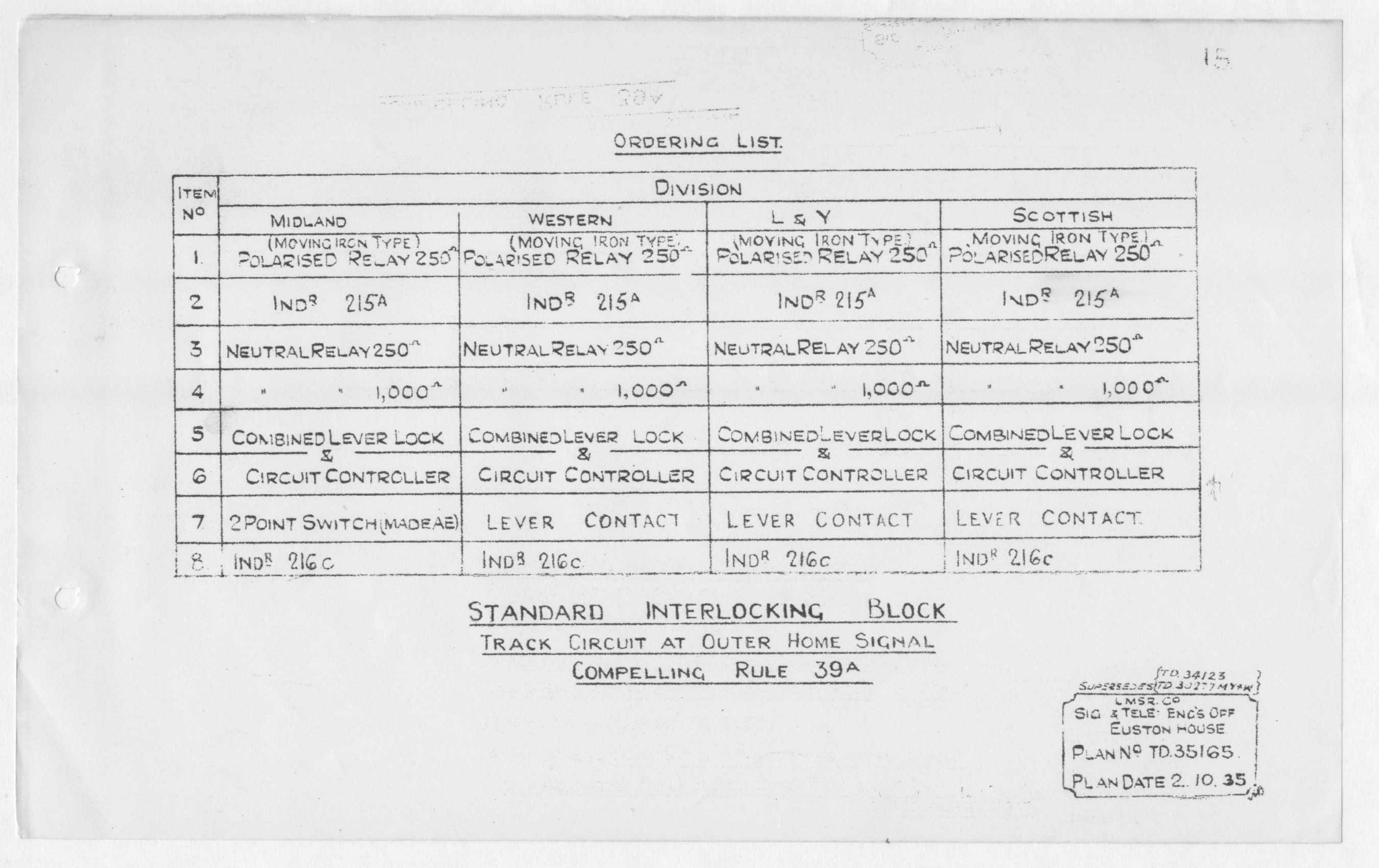

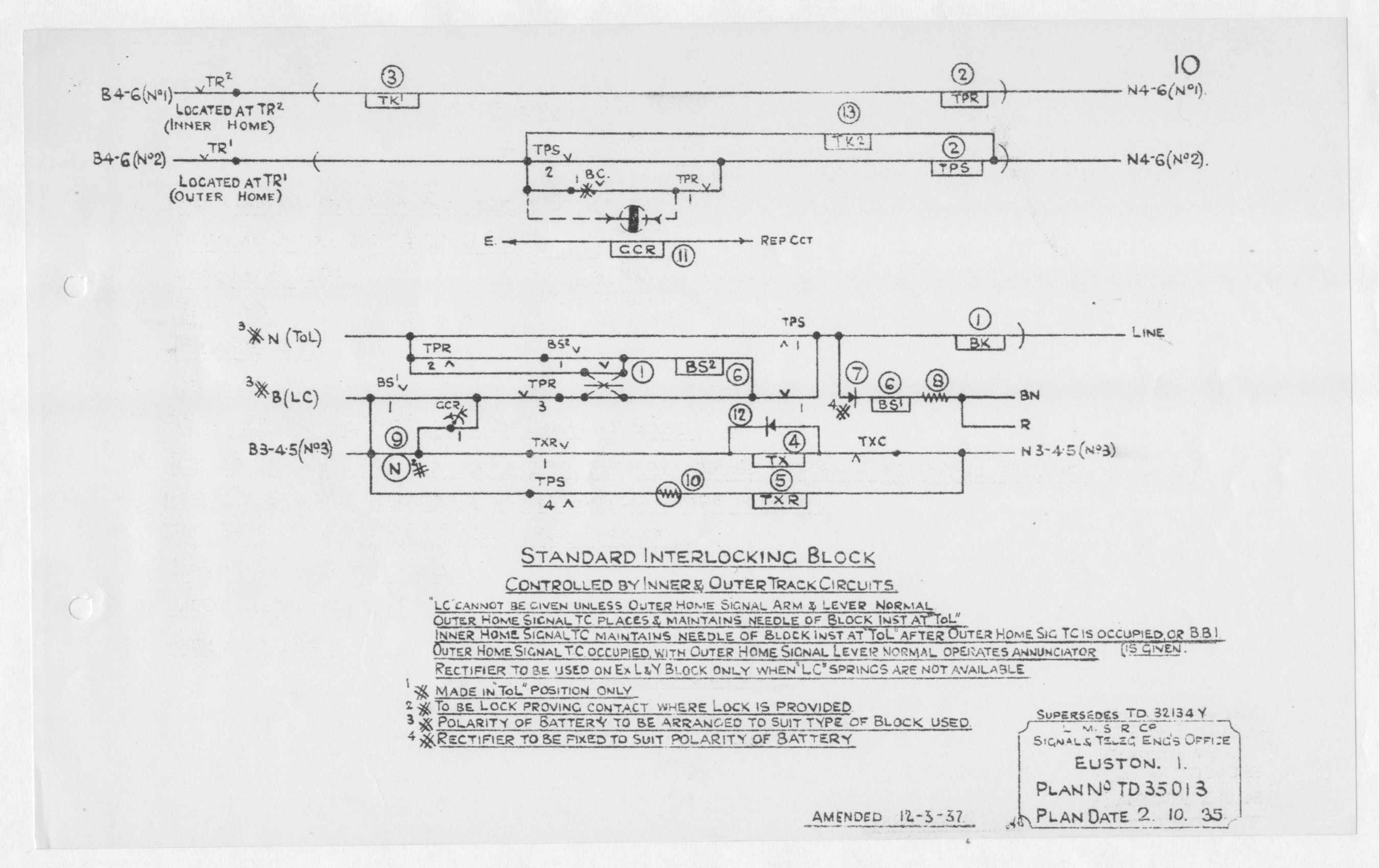

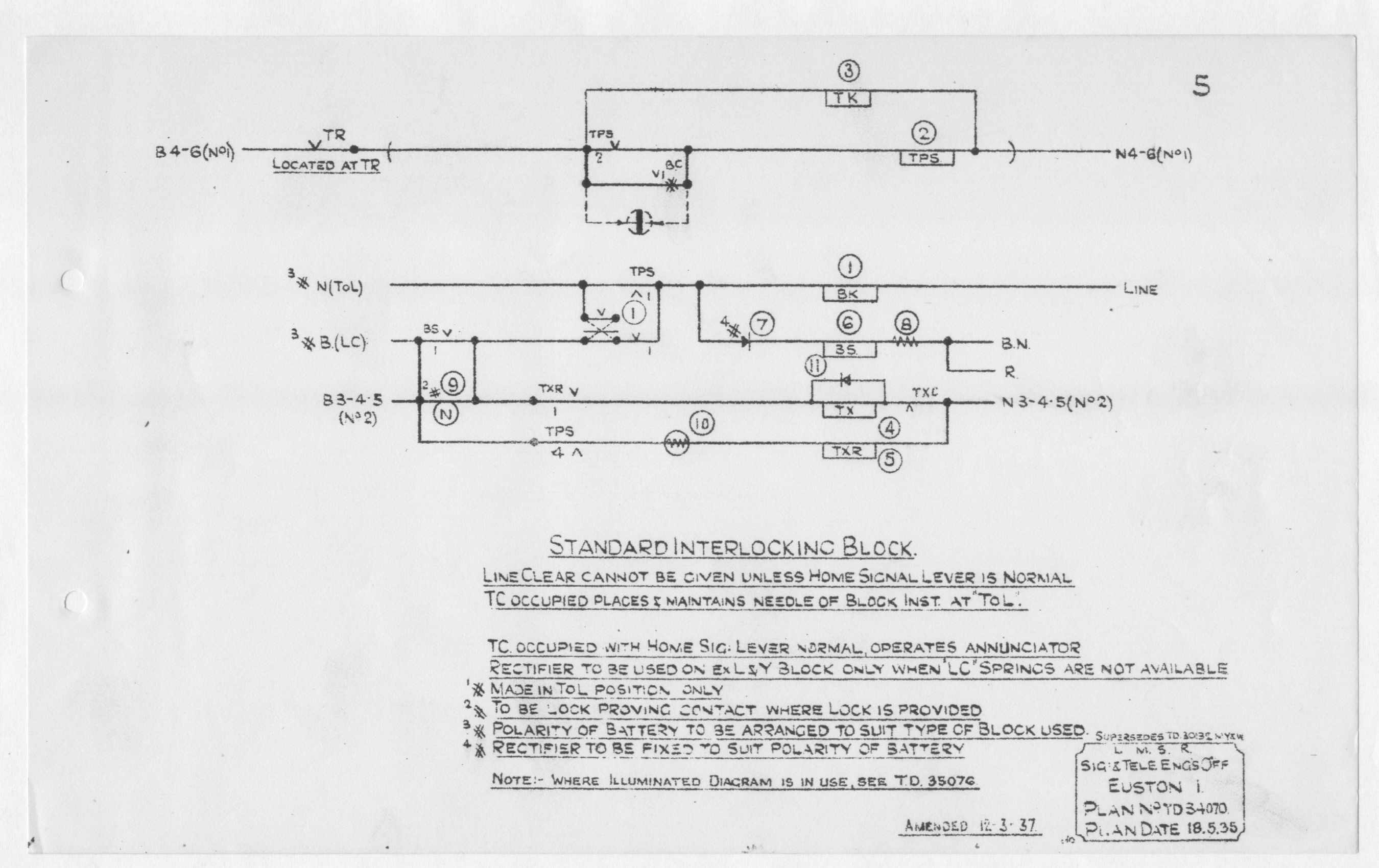

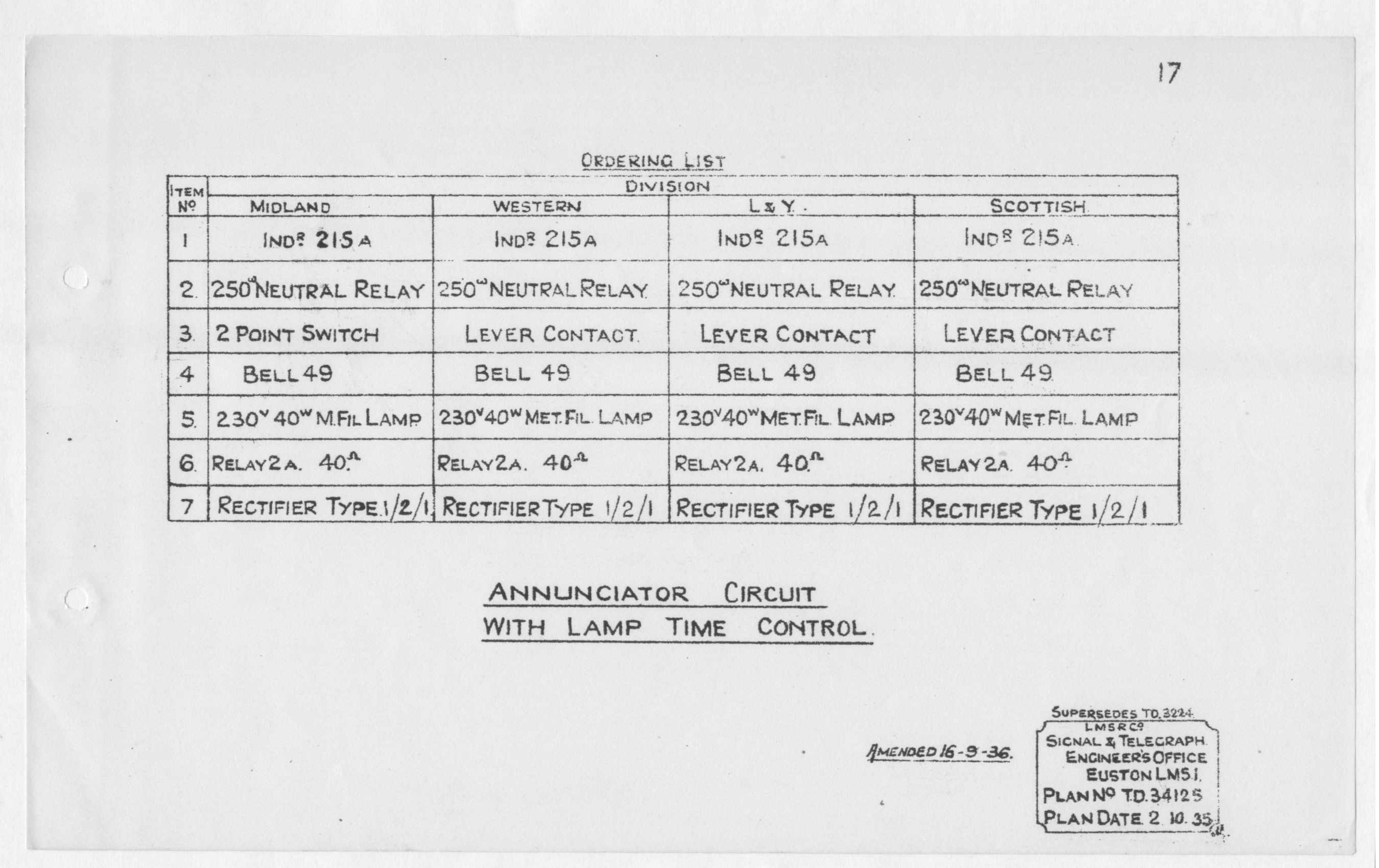

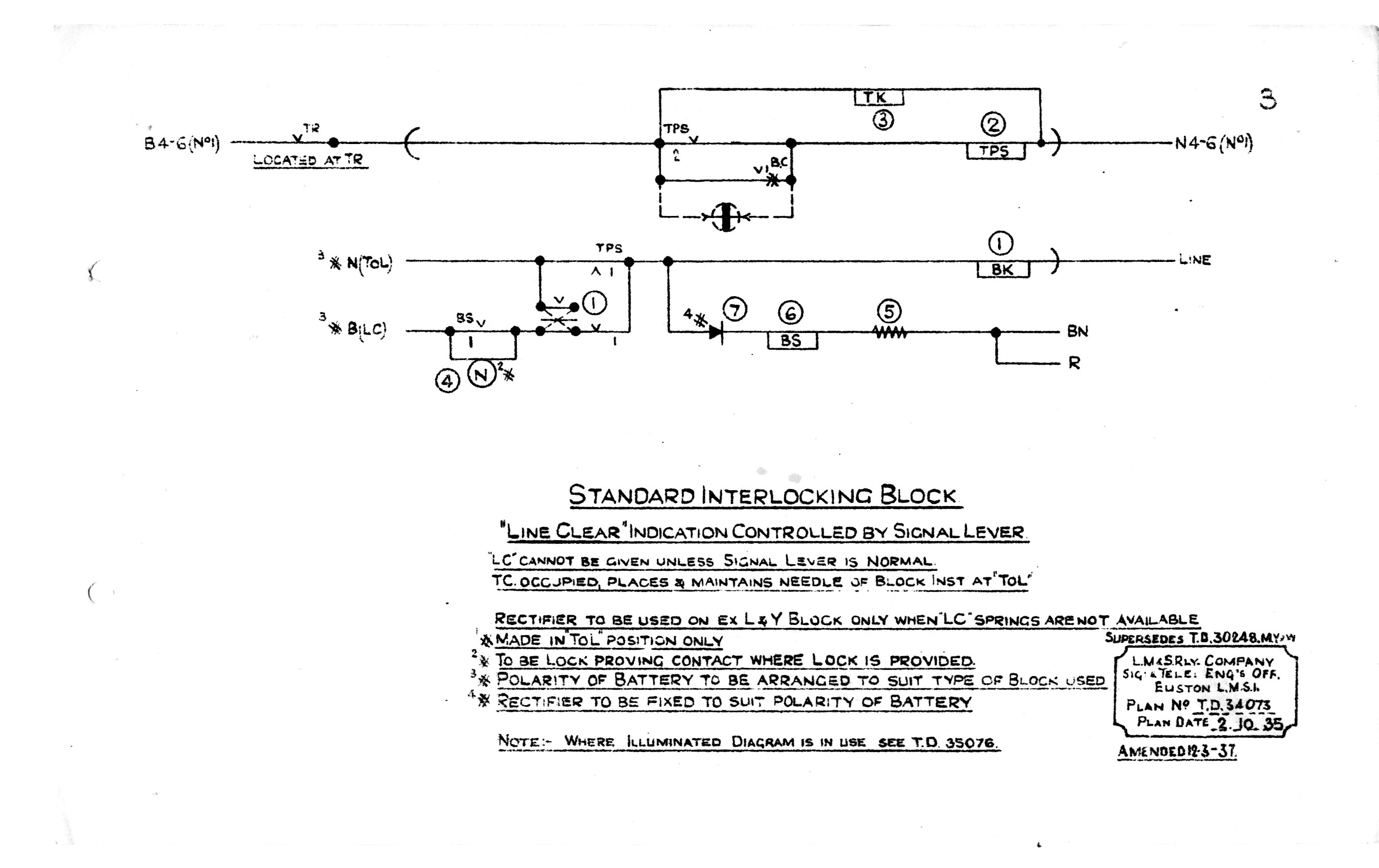

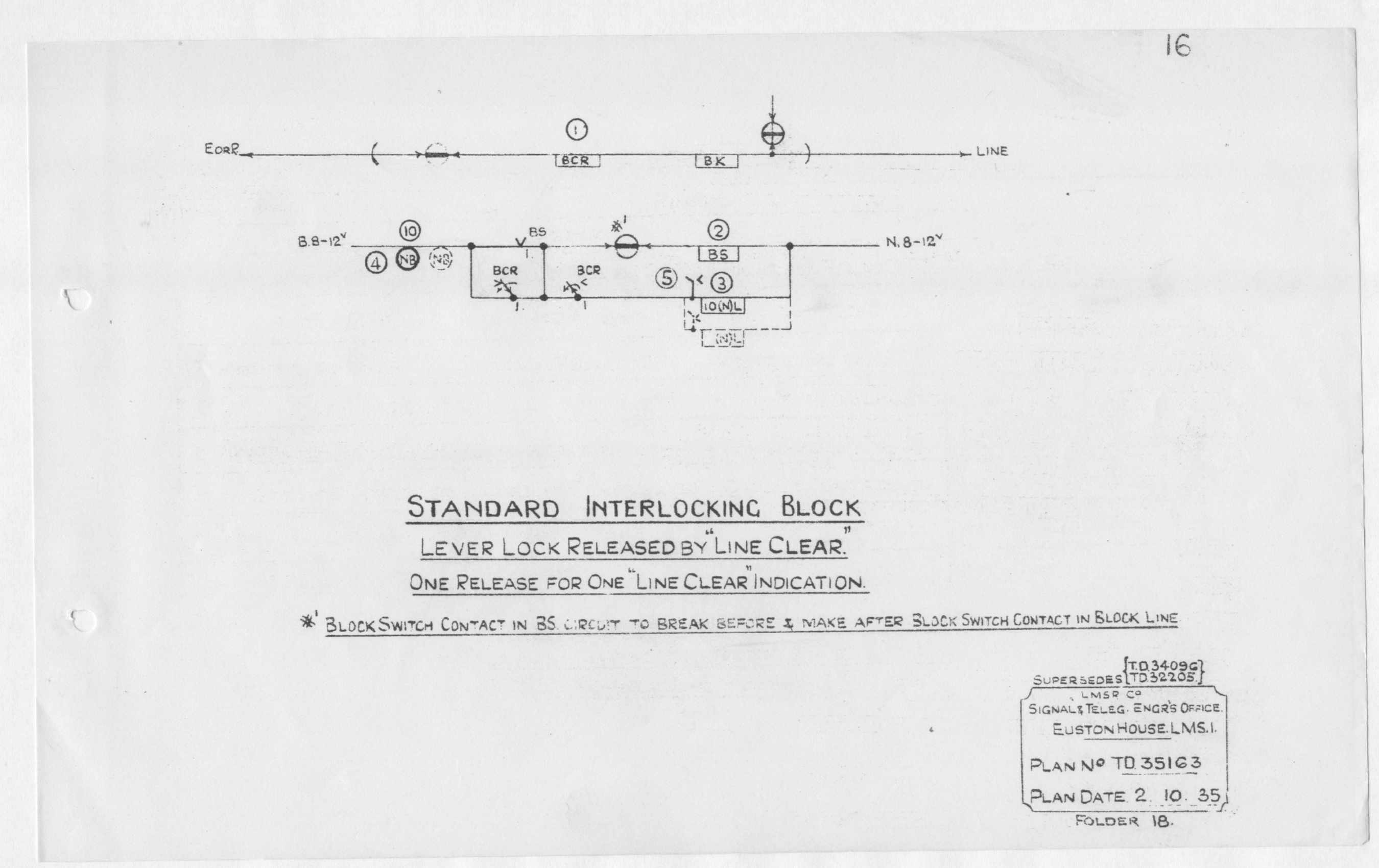

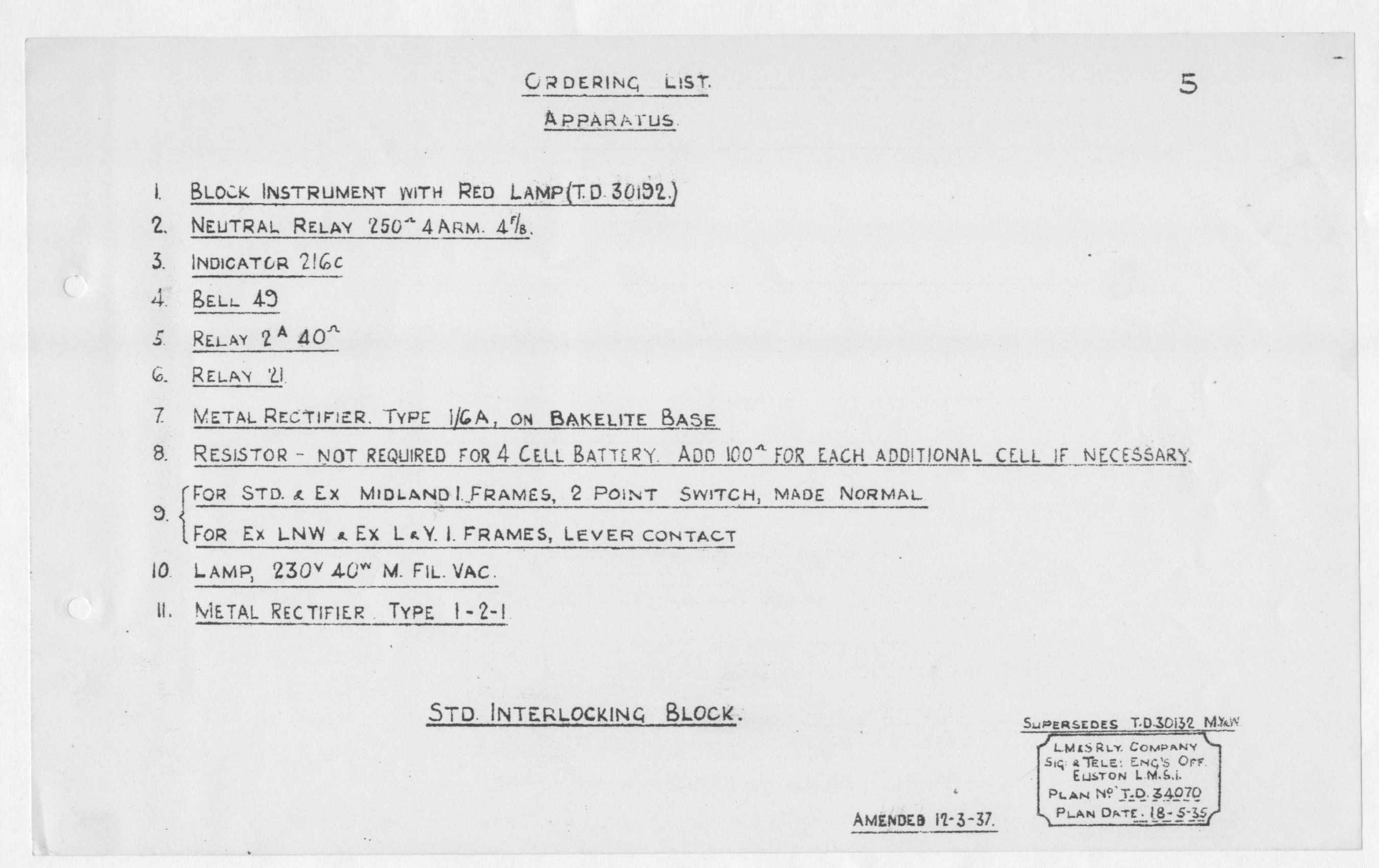

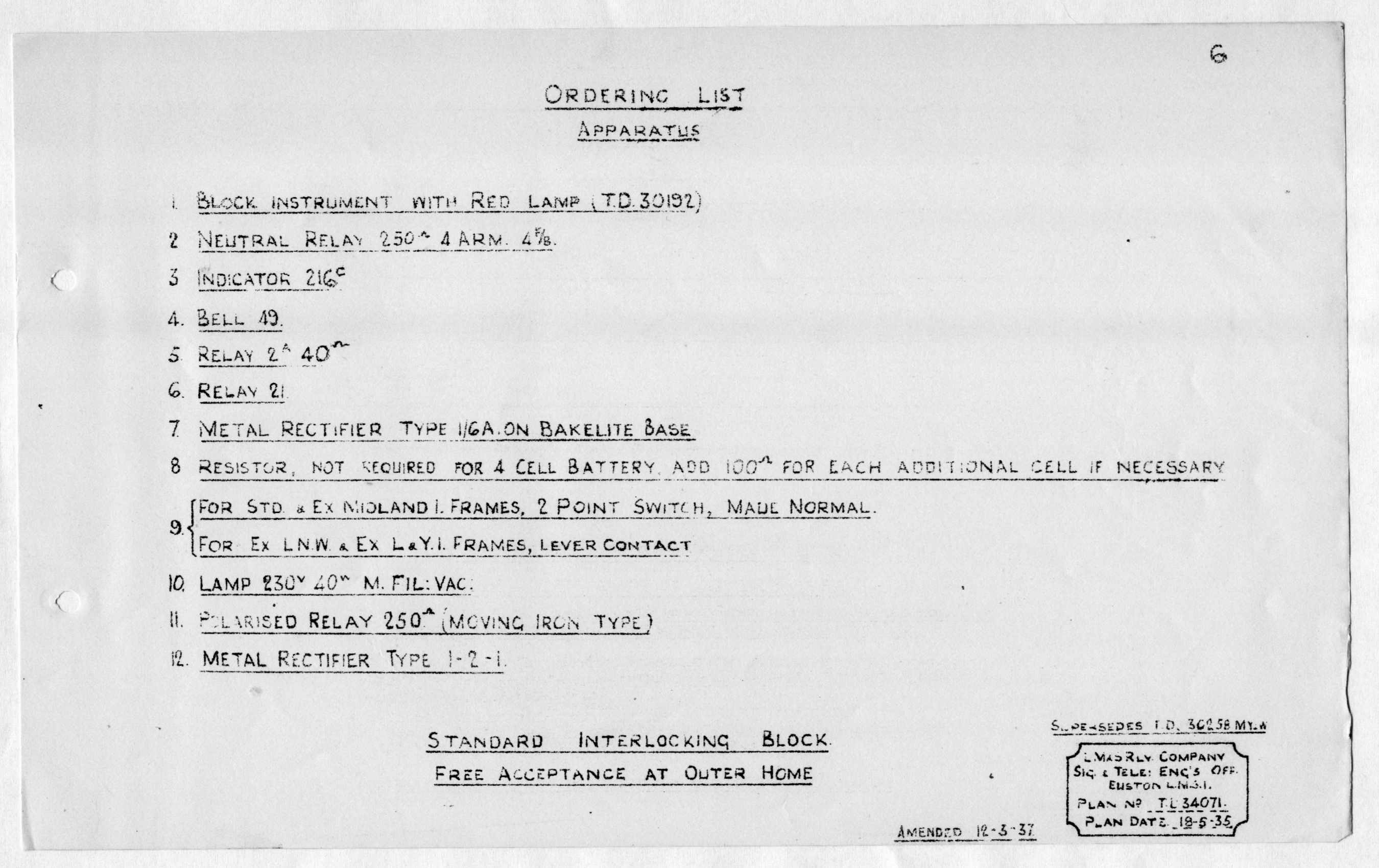

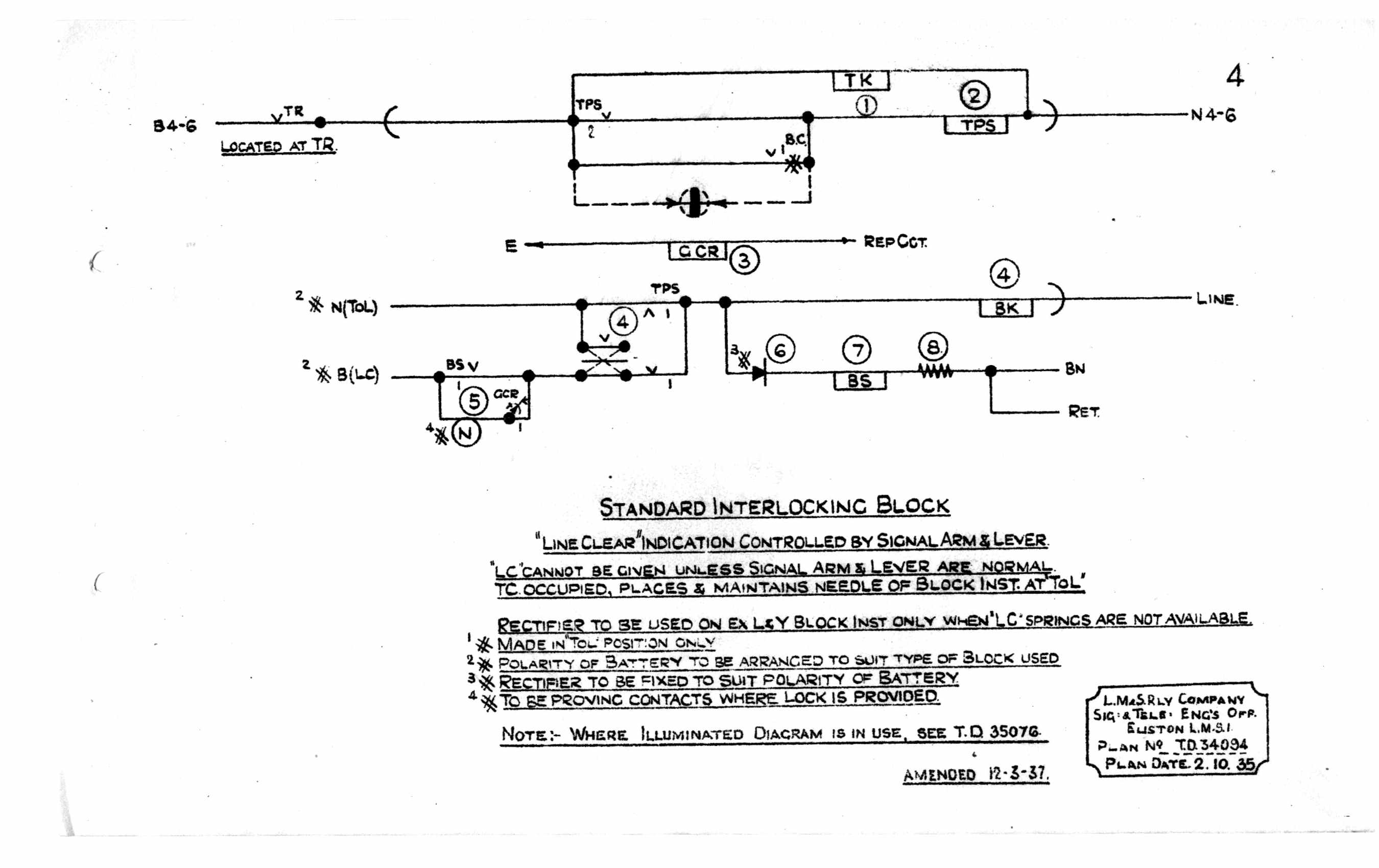

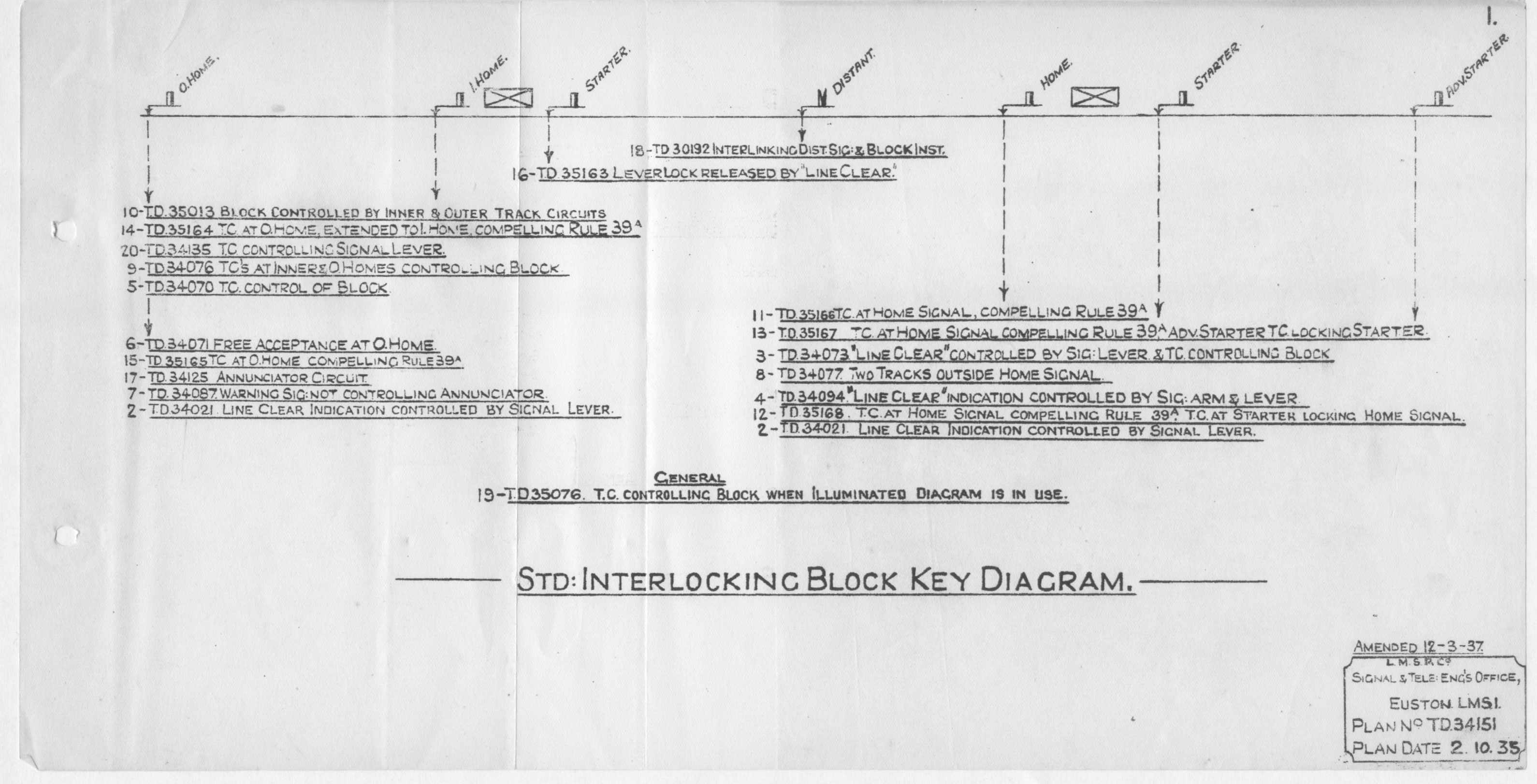

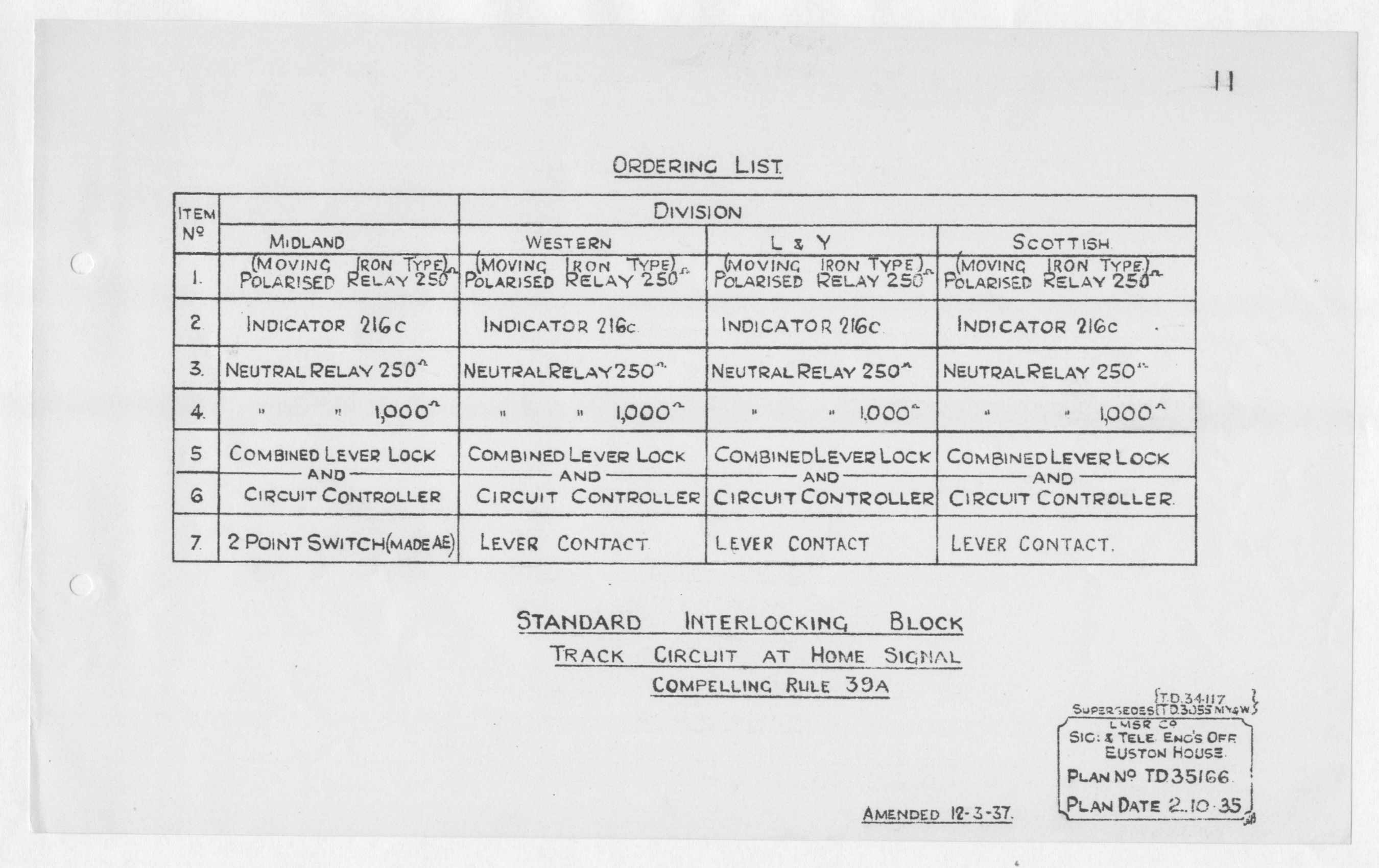

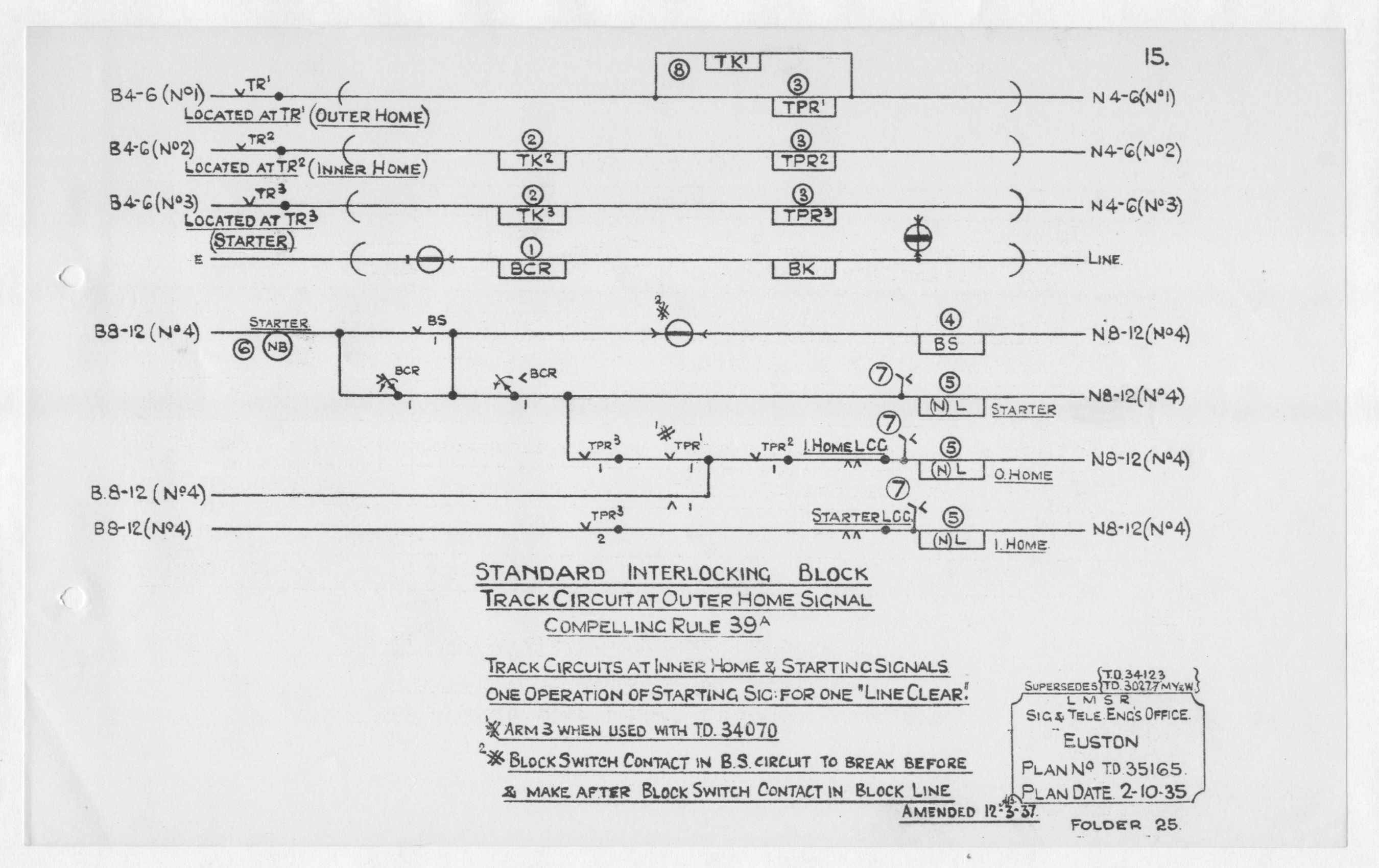

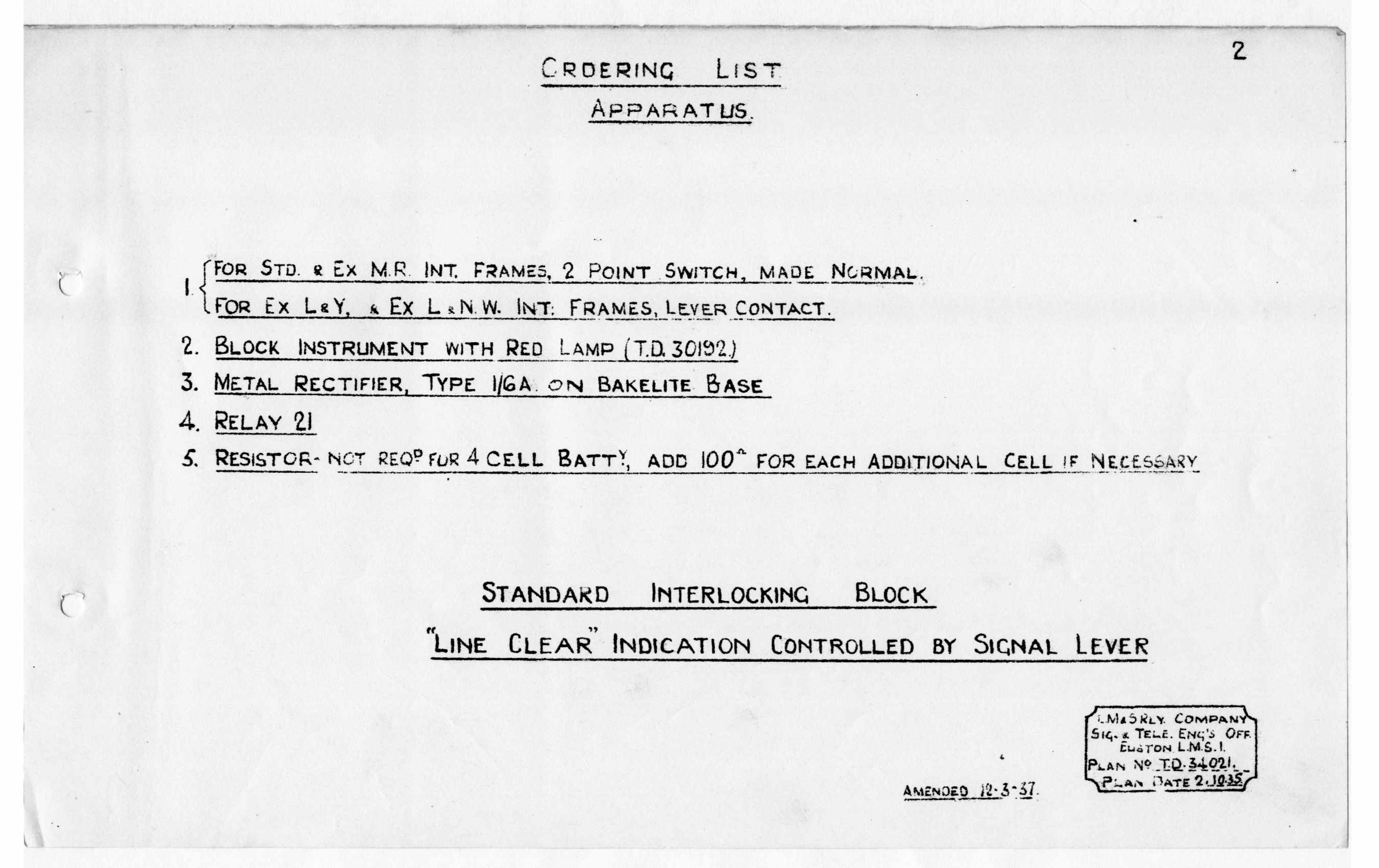

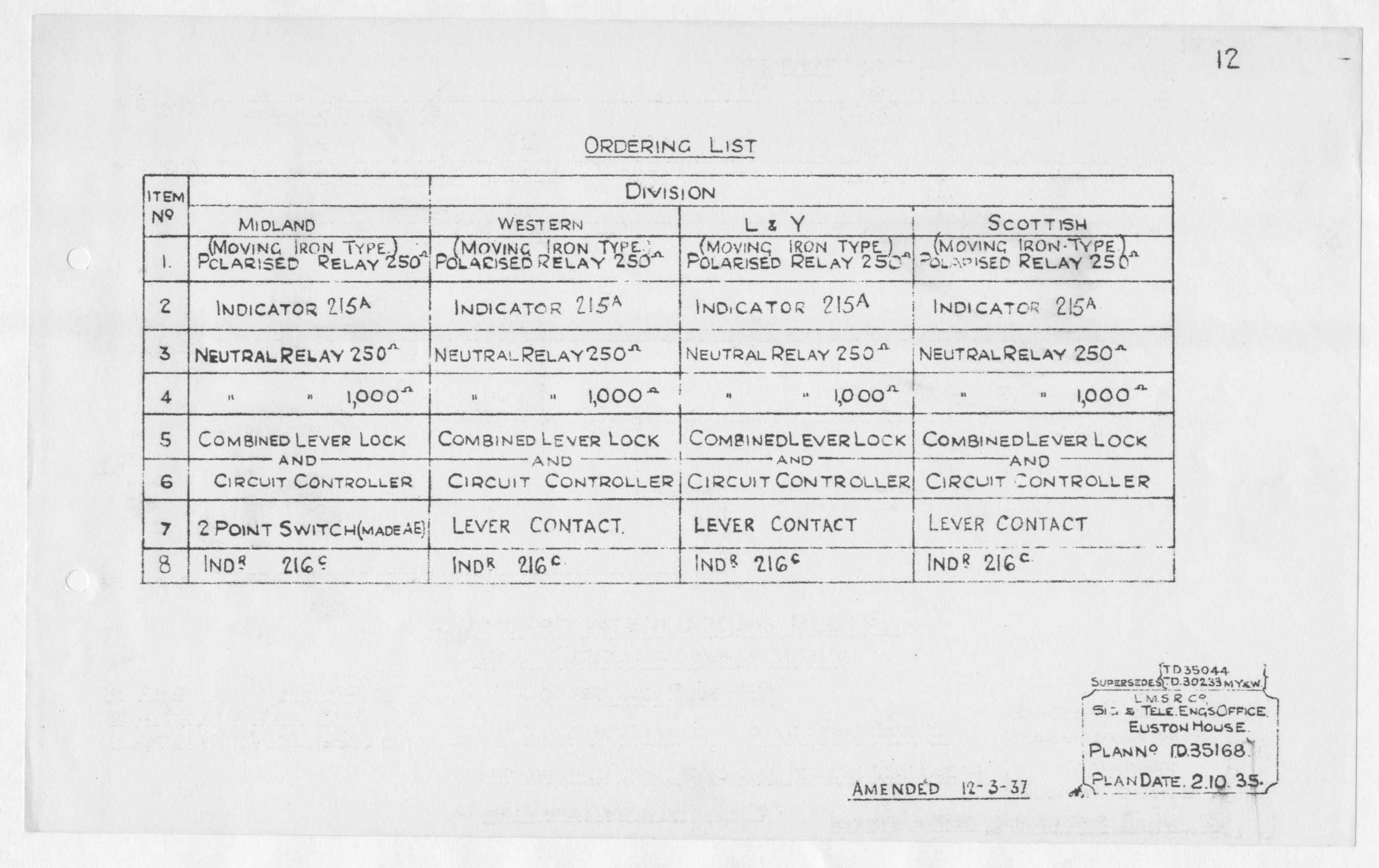

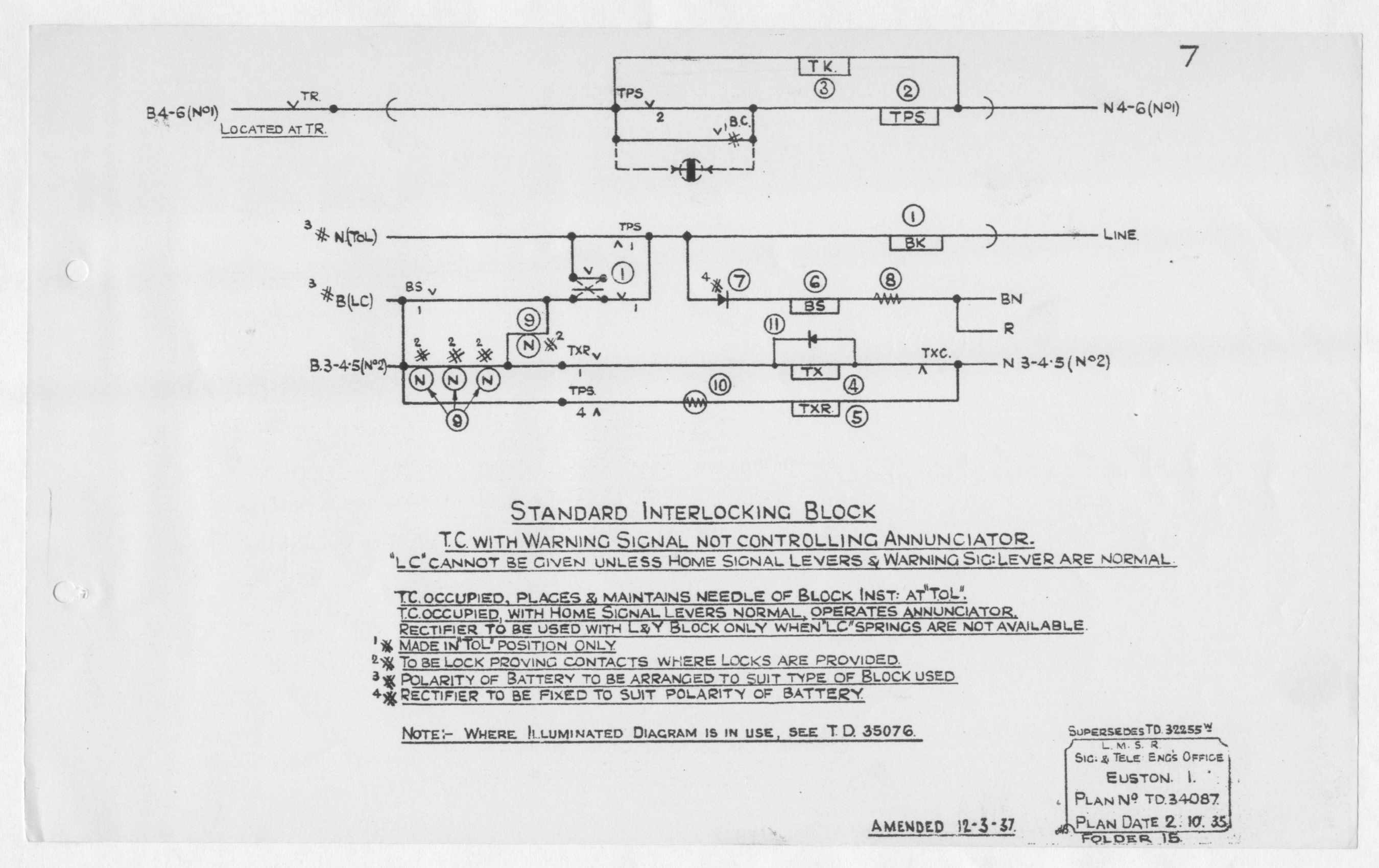

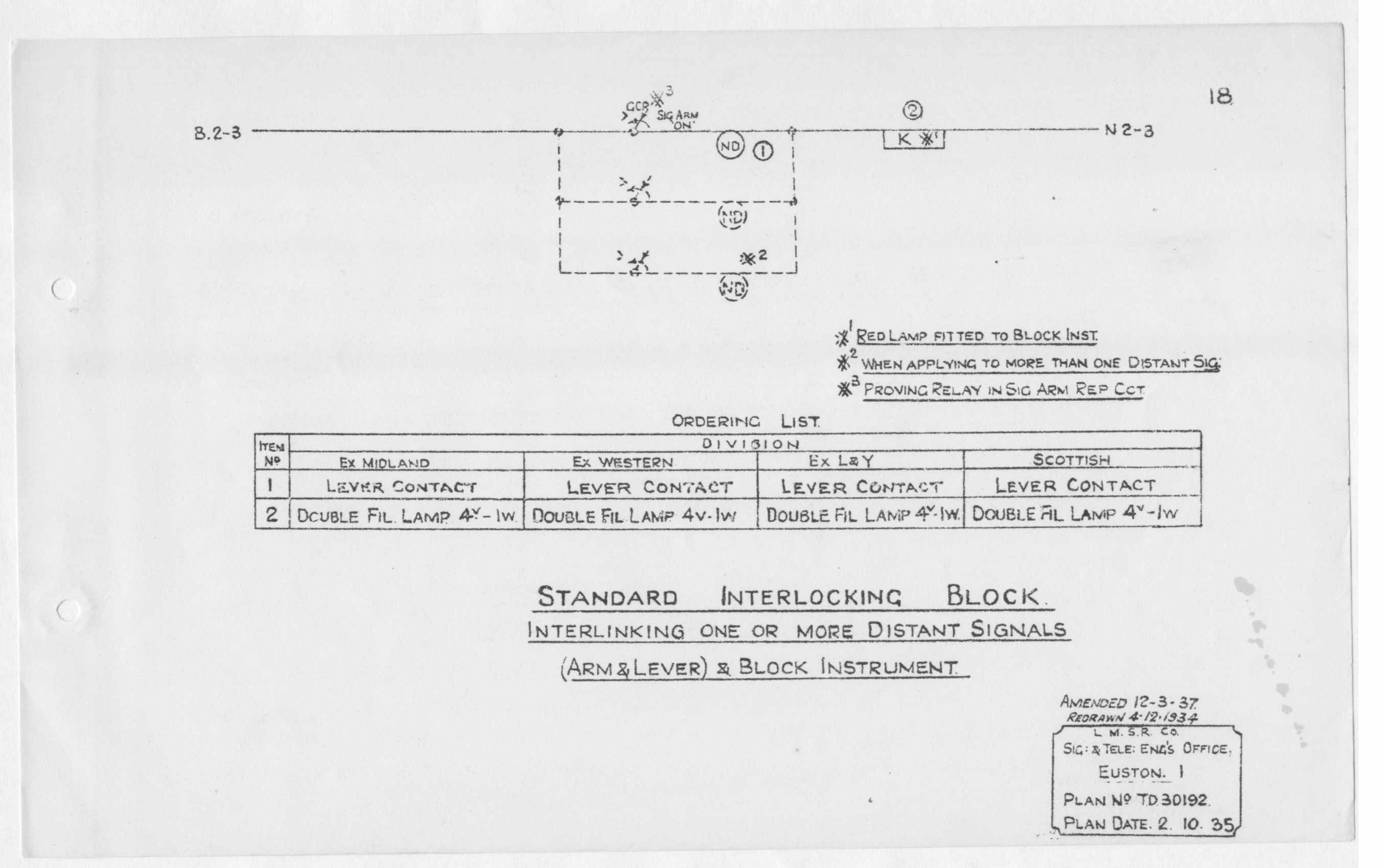

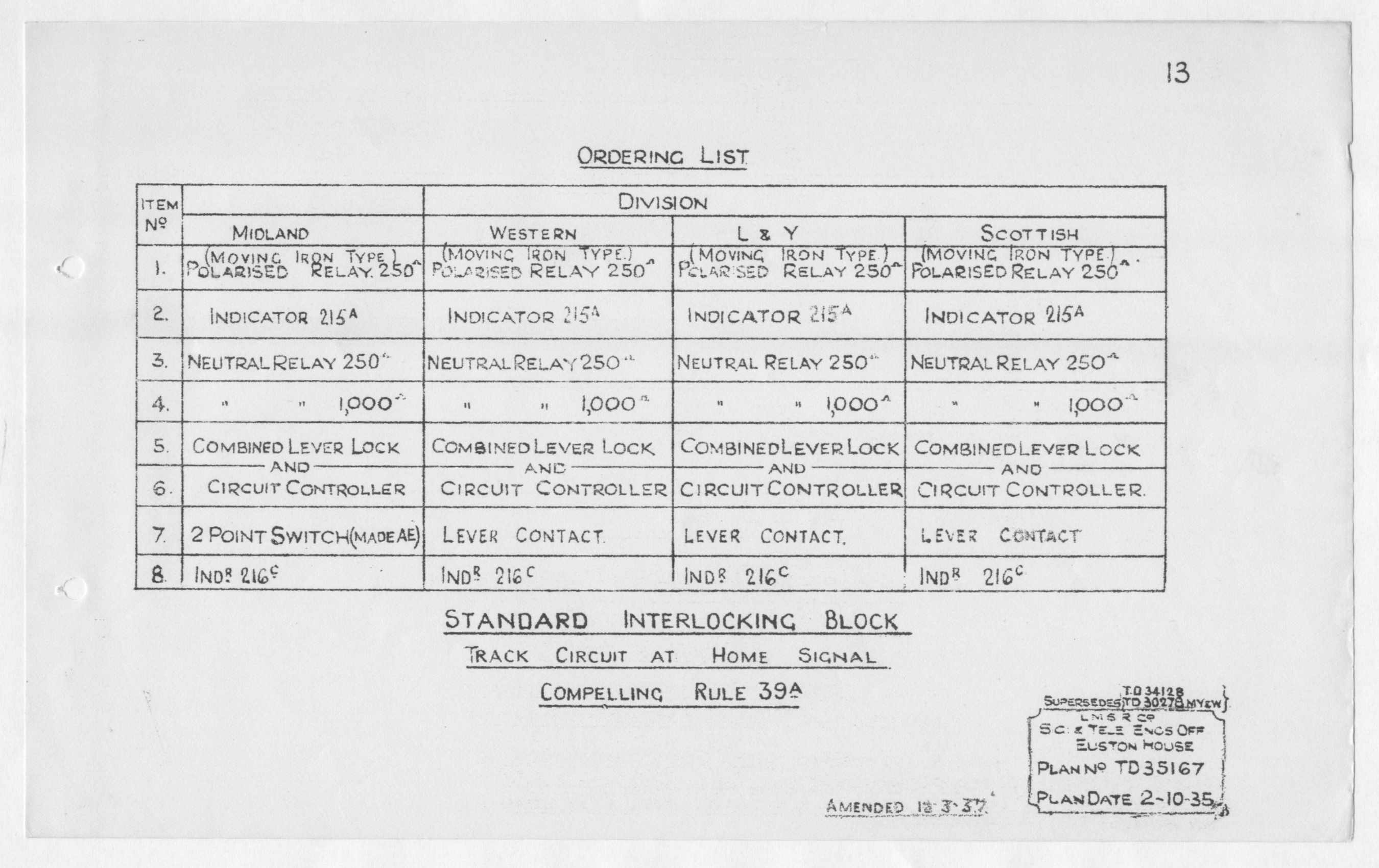

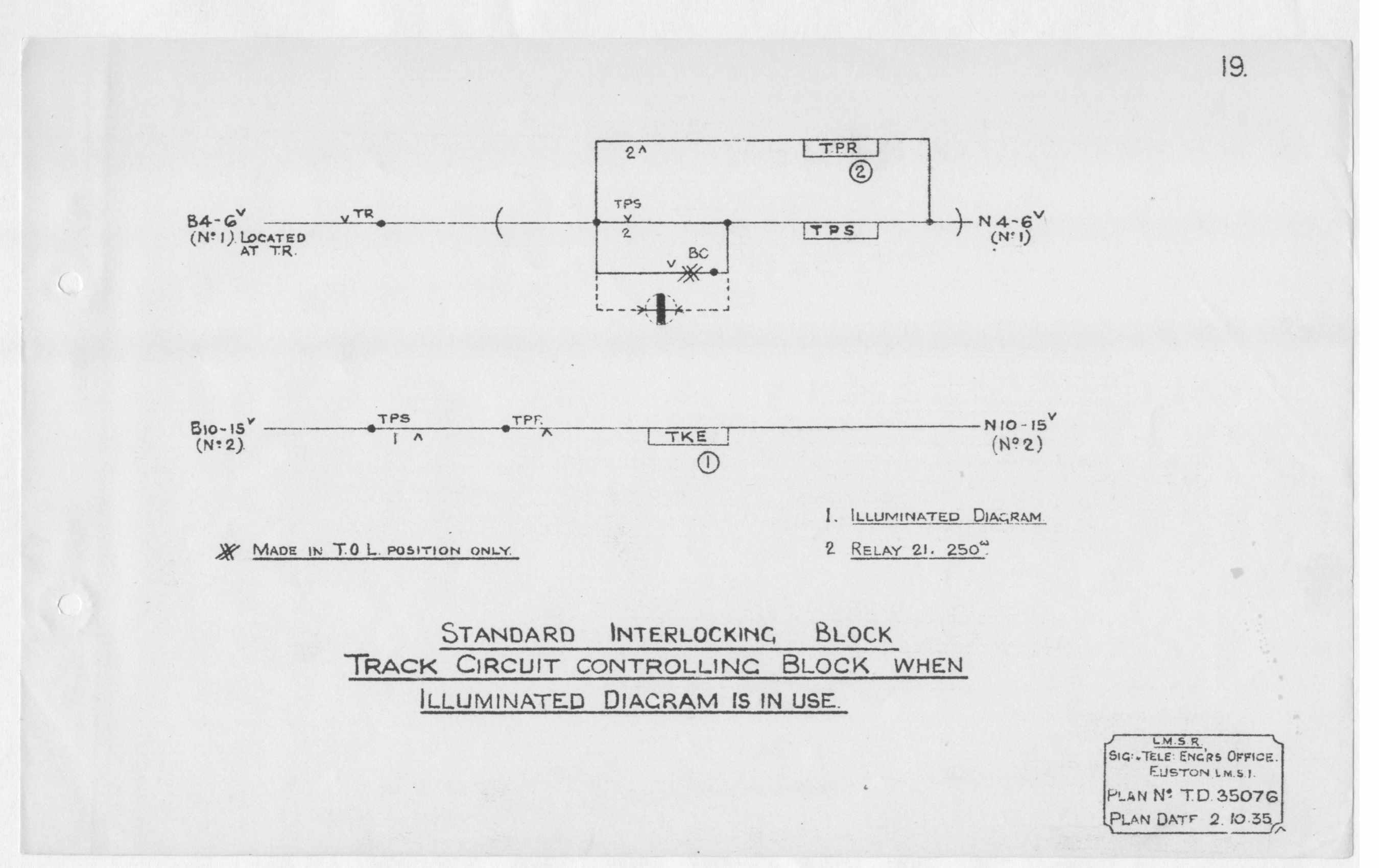

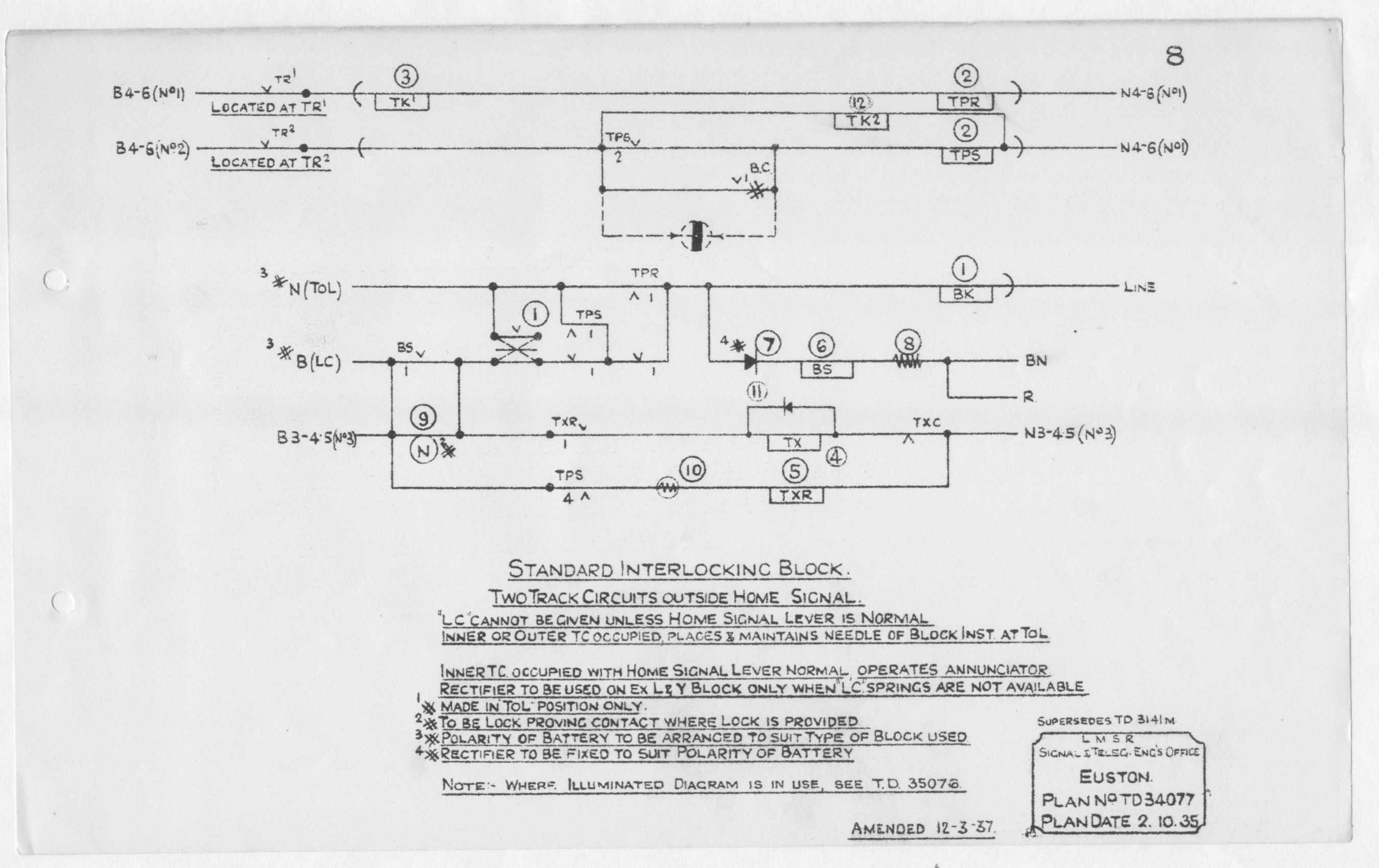

This is a reproduction of a set of standard wiring diagrams for 3-wire, 3-position block. It does not cover ex-Midland Railway Rotary Block. index and key diagram sheet 2 diagram; list sheet 3 diagram; list sheet 4 diagram; list sheet 5 diagram; list sheet 6 diagram; list sheet 7 diagram; list sheet 8 diagram; list sheet 9 diagram; list sheet 10 diagram; list sheet 11 diagram; list sheet 12 diagram; list sheet 13 diagram; list sheet 14 diagram; list sheet 15 diagram; list sheet 16 diagram; list sheet 17 diagram; list sheet 18 diagram sheet 19 diagram
|
|
